Factory High Quality DIN-Male Low PIM RF Dummy Termination Load

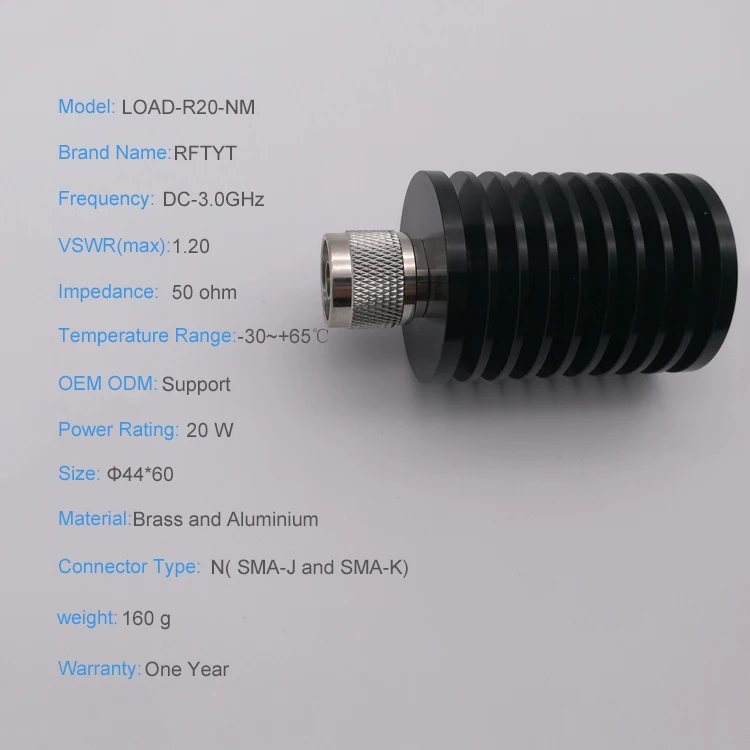

Quick Information

• Brand Name: RFTYT
• Place of Origin: China
• Model Number : LOAD-R20-NM
• VSWR (max) : 1.20
• Frequency : DC-3GHz
• Power Rating : 20W
• Size : D44*60
• Connector Type : N( SMA-J and SMA-K)

Description

Factory High Quality DIN-Male Low PIM RF Dummy Termination Load

Our Products Features:

1.Good temperature behavior, High aseismatic capability.
2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery.
4.Custom design available upon request.
5.Meet ROHS standard.
6.Guaranteed for one year standard





Power Rating	Frenquency	VSWR	Impedance	Weight	Dimension	Connector	Model
(W)	(GHz)	(Max)	(Ω)	(g)	(mm)
0.5	DC-3GHz/DC-6GHz	1.20/1.25	50	3.5	Φ9*13	SMA	LOAD-R0.5-NM
2	DC-3GHz/DC-6GHz	1.20/1.25	50	20	Φ16*28	TNC	LOAD-R2-T
2	DC-3GHz/DC-6GHz	1.20/1.25	50	15	Φ15*28	BNC	LOAD-R2-B
2	DC-3GHz/DC-6GHz	1.15/1.25	50	40	Φ20*36	N	LOAD-R2-N
2	DC-3GHz/DC-6GHz	1.15/1.25	50	17	Φ15*25	SMA	LOAD-R2-S
5	DC-3GHz/DC-6GHz	1.15/1.25	50	29	Φ24*43	SMA	LOAD-R2-S
5	DC-3GHz/DC-6GHz	1.15/1.25	50	36	Φ20*33	TNC	LOAD-R5-T
5	DC-3GHz/DC-6GHz	1.15/1.25	50	30	Φ30*46	TNC	LOAD-R5-T
5	DC-3GHz/DC-6GHz	1.15/1.25	50	34	Φ20*37	N	LOAD-R5-N
5	DC-3GHz/DC-6GHz	1.15/1.25	50	60	Φ30*50	N	LOAD-R5-N
5	DC-3GHz/DC-6GHz	1.15/1.25	50	18.5	Φ14.8*30	Flange	LOAD-R5-F
10	DC-3GHz/DC-6GHz	1.15/1.25	50	100	Φ35*58	N	LOAD-R10-N
10	DC-3GHz/DC-6GHz	1.15/1.25	50	300	39*65*65	N	LOAD-S10-NA
10	DC-3GHz/DC-6GHz	1.15/1.25	50	286	60*60*50	N	LOAD-S10-NB
20	DC-3GHz/DC-6GHz	1.15/1.25	50	135	Φ40*70	N	LOAD-R20-N
20	DC-3GHz/DC-6GHz	1.15/1.25	50	330	70*60*50	N	LOAD-S20-N
30	DC-3GHz/DC-6GHz	1.15/1.25	50	210	Φ45*90	N	LOAD-R30-N
30	DC-3GHz/DC-6GHz	1.20/1.25	50	510	100*70*50	N	LOAD-S30-N
50	DC-3GHz/DC-6GHz	1.20/1.25	50	330	Φ50*120	N	LOAD-R50-N
50	DC-3GHz/DC-6GHz	1.20/1.25	50	730	100*85*60	N	LOAD-S50-N
100	DC-3GHz/DC-6GHz	1.20/1.25	50	1.5Kg	142*120*65	N	LOAD-S100-N
200	DC-3GHz/DC-6GHz	1.20/1.25	50	3.4Kg	230*160*87	N	LOAD-S200-N
300	DC-3GHz/DC-6GHz	1.20/1.25	50	5.1Kg	300*160*86	N	LOAD-S300-N
300	DC-3GHz/DC-6GHz	1.20/1.25	50	4Kg	298*100*60	N	LOAD-S300-N
500	DC-3GHz/DC-6GHz	1.25/1.30	50	10Kg	400*245*97	N	LOAD-S500-N
1000	DC-3GHz	1.30	50	17Kg	400*400*97	N	LOAD-S1000-N
